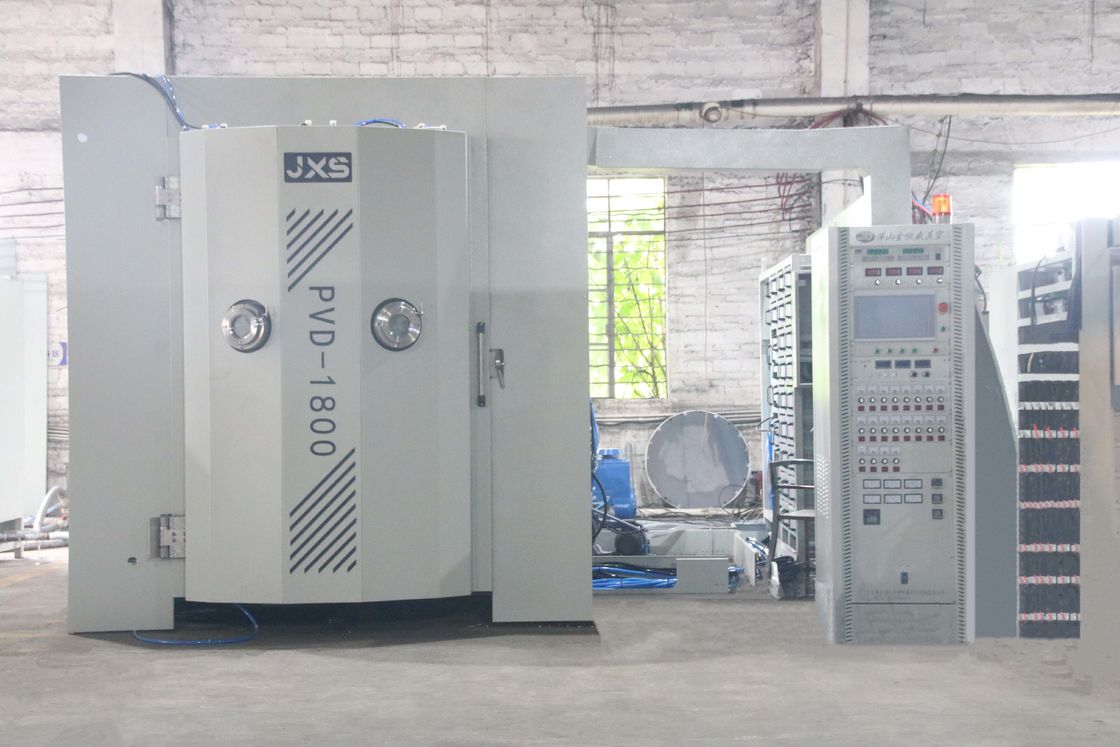

Full Auto PVD Coating Machine with Stainless Steel Vacuum Chamber and Custom Made Vacuum Plating Machine

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	JXS
إصدار الشهادات:	CE

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	negotiable
تفاصيل التغليف:	حالة خشبية، فيلم من البلاستيك
وقت التسليم:	60 يوم عمل
شروط الدفع:	تي / تي، خطاب الاعتماد
القدرة على العرض:	100 مجموعة / سنة

مفصلة وصف المنتج

نظام التحكم:	السيارات الكاملة	نوع الآلة:	معدات الطلاء
ركائز:	المعادن، الزجاج، السيراميك، بولي كلوريد الفينيل الخ.	لون الطلاء:	الذهب والفضة والذهب الوردي وما إلى ذلك.
موقع:	فوشان	ماركة المضخة:	JXS
ضمان:	1 سنة

Vacuum Coating Machine For Plastic Aluminum Metalizing Machine PVD Silver Vacuum Plating Machine

This advanced industrial PVD coating machine applies thin, durable films onto various substrates including metals, ceramics, and plastics. Featuring energy-saving capabilities, it's specifically designed for decorative products, enhancing both appearance and performance.

Product Overview

A PVD coating machine is a device used for Physical Vapor Deposition, a process that deposits thin films onto various substrates. It operates in a vacuum chamber where a solid material, such as titanium or chromium, is vaporized through techniques like sputtering or evaporation. The vaporized atoms then condense on the target workpiece, forming a thin, uniform, and highly adherent coating.

This technology is crucial in many industries due to the superior properties of PVD coatings. They significantly enhance surface hardness, wear resistance, and corrosion protection. Common applications include coating cutting tools to extend their lifespan, applying decorative finishes like gold or rose gold to watches and jewelry, and creating functional layers on medical implants and automotive components.

Compared to traditional methods, PVD is an environmentally friendly process. It produces durable coatings without using harmful chemicals or generating significant hazardous waste. The resulting films are also very pure and dense. Modern PVD machines are highly automated, allowing for precise control over coating thickness, composition, and structure, which ensures consistent, high-quality results for demanding industrial applications.

Technical Specifications

Component	Specification
Bias Power Supply	1 Set
Rotation Stand	1 Set
Heating System	1 Set
Structure	Vertical Front Loading Or Vertical Loading
Vacuum Chamber Material	Stainless Steel
Vacuum Chamber Inner Size	Custom Made

Benefits After PVD Coating

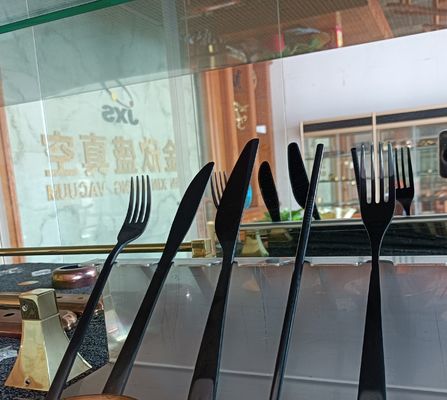

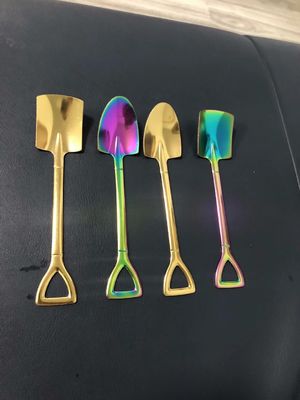

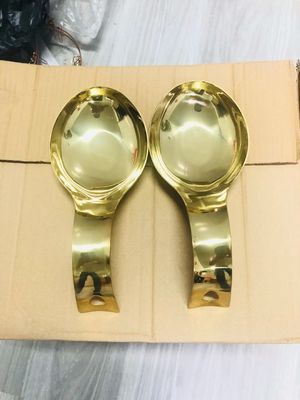

Stainless steel hardware displays decorative colors for enhanced visual appeal
Strong adhesion film ensures longer service life
Coated products achieve higher market value

Product Images

Frequently Asked Questions

How about your company?

We are a leading manufacturer and provider of total integrated supply chain solutions for vacuum coating machines.

How about the quality control about your products?

We maintain ISO9001 Quality Management System certification for comprehensive quality control.

Do you provide after-sales service?

After-sales problems are resolved online within 48 hours, with long-term product solutions and remote technical support provided.

What about the payment terms?

T/T (Telegraphic Transfer) is standard, with flexibility according to different machine types.

About the packaging?

Nude packing or wooden case carton container options are available.

Do you provide second-hand machines?

Yes, we provide second-hand machines. Please provide your requirements to our sales team.
